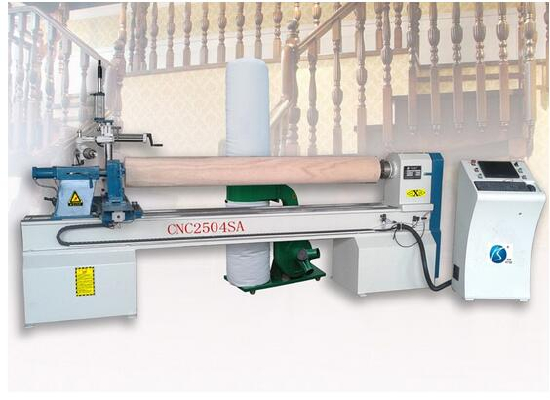

cnc wood lathe CNC2504SA wood turning lathe


Technical Parameters

The characteristics
A horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
10. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
11, five-axis multifunction complete turning, milling, engraving, pull slots and other functions.

Use
Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .

The configuration

Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, engraving spindle and pull trough multifunction control section;
4, universal swivel joints;
5, the rotation center with the knife (5CM ~ 6CM wooden);
6, pneumatic feeding, automatic centering;
7, pneumatic material thimble;
8, V-type front steel tools;
9, with controls easy to use software, the basic pattern software;
10 randomly accompanied.
Select Configure
1, φ160 four jaw chuck linkage;
2, woodworking special vacuum cleaner;
3,220V constant power frequency spindle control;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
