CNC Wood Lathe CNC2504SA Wood Turning Machine

CNC Wood Lathe CNC2504SA Wood Turning Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-11-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong
  • Brand Name:  HAISHU
  • Model Number:  CNC2504SA

cnc wood lathe CNC2504SA wood turning lathe


Technical Parameters


Brand name

Unit

Technical data

CNC2504SA

Max processing size

mm

T400*2500

Z-axis maximu moving distance

mm

2550

X-axis maximum one-way  moving distance


mm

250

Main drive form


Independent spindles, frequency stepless


Spindle speed range


r/min

0-3500

Feeding speed

mm/min

3000

Chuck diameter

mm

Φ160

Main motor power

kw

5.5

Power supply

380V/50HZ

Dimensions (L * W *H)

mm

3750×1400×1700

Net weight(Kg)

kg

1800

The characteristics
A horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
10. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.

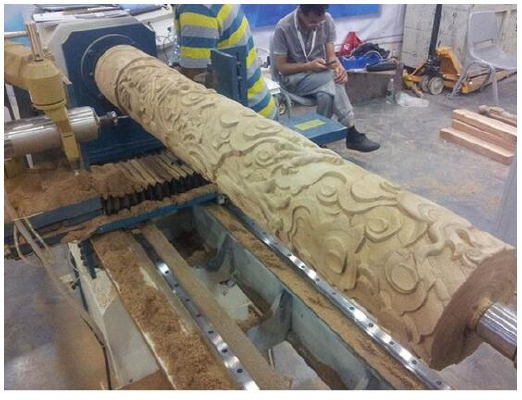

11, five-axis multifunction complete turning, milling, engraving, pull slots and other functions.

Use
Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .

The configuration

Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, engraving spindle and pull trough multifunction control section;
4, universal swivel joints;
5, the rotation center with the knife (5CM ~ 6CM wooden);
6, pneumatic feeding, automatic centering;
7, pneumatic material thimble;
8, V-type front steel tools;
9, with controls easy to use software, the basic pattern software;
10 randomly accompanied.
Select Configure
1, φ160 four jaw chuck linkage;
2, woodworking special vacuum cleaner;
3,220V constant power frequency spindle control;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.

If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
