- Place of Origin: Shandong
- Brand Name: HAISHU
- Model Number: CK6136H
Basic Info
Model NO.: CK6136H
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Controlling Mode: CNC
Setting Mode: Floor-type
Certification: CE, ISO 9001
Max.Swiming Over The Bed Dia. (mm): 420
Max.The Workpiece Length(mm): 750
The Form of The Spindle Head: No.6 A2type
Chuck Dia. (mm): 200
Fast-Moving Feed(mm/Min): X - Axis:6000 Z - Axis:8000
Trademark: haishu
Origin: Shandong Taian
Type: Horizontal Lathe
Guide Rail: Inclined Guide Rail
Power Source: Electric
Automatic Grade: Automatic
Precision: High Precision
Condition: New
Max.Swiming Over Pallet(mm): 210
Range of Spindle Speed(R/Min): 300-3000
Spindle Bore(mm): 58
Turret Maximum Stroke(mm): X - Axis: 260 Z - Axis:750
Repeat Positioning Accuracy(mm): X - Axis:0.01 Z - Axis:0.015
Specification: ce
Product Description

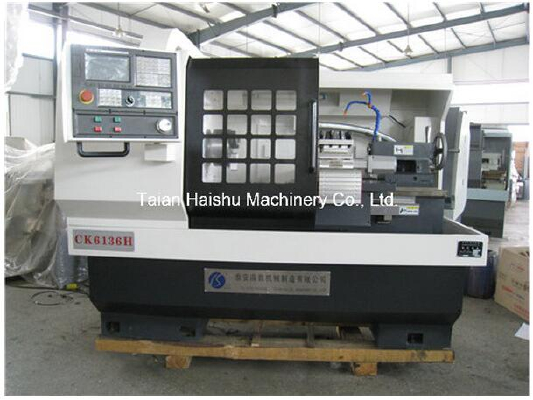

Popular European market cnc machine tools CK6136H factories machines cnc metal lathe from taian Haishu
Technical parameters
Item | Project name | Technical paramaters |
technical specifications | Max.swiming over the bed dia. (mm) | Φ420 |
Max.swiming over pallet(mm) | Φ210 | |
Max.the workpiece length(mm) | 750 | |
Main transmission | Main transmission form | Independent spindle; frequency conversion stepless |
Number of spindle speeds | stepless | |
Range of spindle speed(r/min) | 300~3000 | |
The form of the spindle head | NO.6 A2type | |
Spindle bore(mm) | Φ58 | |
Chuck dia. (mm) | Φ200 | |
Main motor power(kw) | 5.5kw | |
Feed system | Turret maximum stroke(mm) | X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) | X - axis:6000 Z - axis:8000 | |
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | |
Workpiece accuracy | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | |
tailstock | Dia. of tailstock quill(mm) | Φ60 |
Tailstock quill stroke(mm) | 120 | |
Taper of tailstock quill | MT4 | |
Tool post | Standard accessories | 4 station electric tool |
Opinional accessories | Horizontal 6,8-station electric turret or gang-type tool camier | |
Repeat positioning accuracy(mm) | 0.008 | |
Section of turning tool(mm) | 20*20/25*25 | |
Size and weight | The size of the machine (length*width*height)(mm) | 2150*1450*1650 |
Net weight of the machine(kg) | 1800 |
2. Main features
1.) big swim over the bed dia (Φ420mm)
2.) high spindle speed (3000rpm)
3.) main motor power is 5.5kw
4.) horizontal flat bed structure
5.) theguide rail width (335mm)
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
